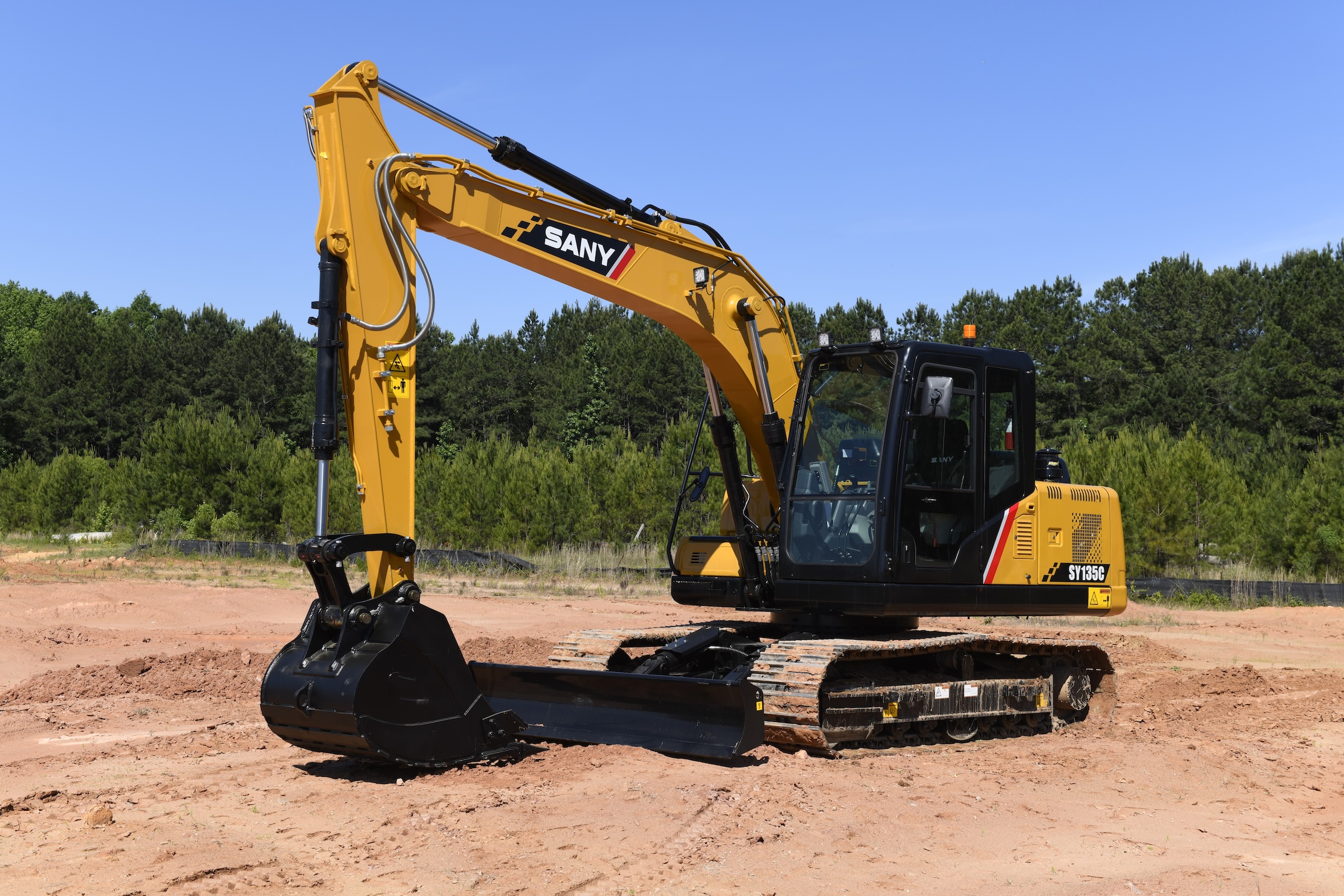

SY135C
32,783 lb | 103.9 hp | 18′ 1″ Dig Depth
The SY135C conventional tail swing excavator is built for utilities, forestry, agriculture, construction, and infrastructure projects. Its strong lifting capacity and durable hydraulic system make it ideal for trenching, land clearing, and handling heavy materials with precision. The backfill blade improves grading and site prep, while quick coupler plumbing and dual auxiliary circuits allow fast, efficient attachment changes.
- Conventional Tail Swing
- Dual Auxiliary Circuits
- Quick-Coupler Plumbing To the End of The Stick
- Easy Serviceability
- Steel Tracks
- Backfill Blade
- Backup Camera
- 7” Touch Screen Display
- 8 Tool Selection Modes
- Powerful Isuzu Engine
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
4 600 mm
15’ 1” |
| Stick (Arm) Length |
2 500 mm
8’ 2” |
| A Transport Length |
7 500 mm
24’ 7” |
| B Transport Width |
2 600 mm
8’ 6” |
| C Transport Height |
2 815 mm
9’ 3” |
| D Upper Structure Width |
2 490 mm
8’ 2” |
| E Blade Height |
458 mm
1’ 6” |
| F Track Width (standard shoe) |
600 mm
24” |
| G Track Gauge |
1 990 mm
6’ 6” |
| H Ground Clearance (minimum) |
425 mm
1’ 5” |
| I Tail Swing Radius |
2 290 mm
7’ 6” |
| J Track Length on Ground |
2 930 mm
9’ 7” |
| K Track Length |
3 665 mm
12’ 0” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
240.0 L
63.2 gal |
| DEF Tank Capacity |
19.0 L
5.0 gal |
| Hydraulic Tank Capacity |
150.0 L
39.5 gal |
| Engine Oil Capacity |
13.2 L
3.5 gal |
| Cooling System Capacity |
22.0 L
5.8 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
14 870 kg
32,783 lbs |
| Ground Pressure |
41 kPa
5.9 psi |
| Engine |
ISUZU FT4-4JJ1X
|
| Displacement |
2.99 L
182.5 in3 |
| Gross Power |
78.5 kW
105.3 HP |
| Net Power |
77.5 kW
103.9 HP |
| Hydraulics |
Positive Flow Control w/Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
242.0 L/min
63.9 gal/min |
| Operating Pressure (maximum) |
34.3 MPa
4,975 psi |
| Primary Auxiliary Flow (maximum)* |
110 L/min
29.1 gal/min |
| Primary Auxiliary Pressure (maximum) |
34.3 MPa
4,975 psi |
| Secondary Auxiliary Flow (maximum)* |
70 L/min
18.5 gal/min |
| Secondary Auxiliary Pressure (maximum) |
24.5 MPa
3,553 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
34.3 MPa
4,975 psi |
| Travel Speeds (maximum) |
3.5 / 5.5 km/hr
2.2 / 3.4 mph |
| Travel Effort (maximum) |
114.0 kN
25,628 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
25.0 MPa
3,626 psi |
| Swing Speed (maximum) |
12 RPM
|
| Undercarriage (standard) |
Steel Track
|
| Track Shoe Width (standard) |
600 mm
24” |
| Track Rollers (per side) |
7
|
| Carrier Rollers (per side) |
1
|
