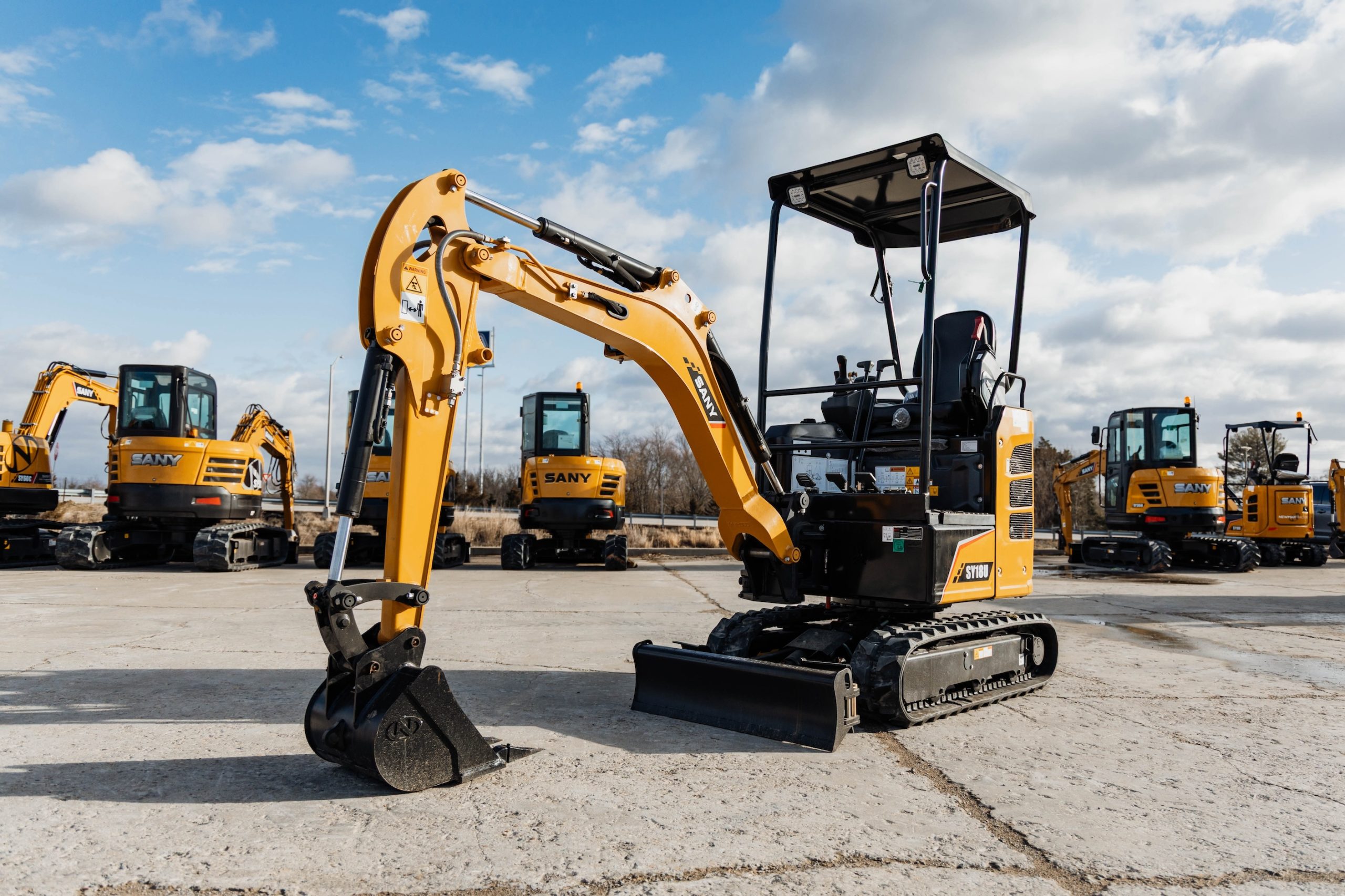

SY18U
4,244 lbs | 18.2 hp | 8′ 6″ Dig Depth
SANY Equipment is built to last and backed with the coverage to prove it. Our Standard warranties help protect your investment and minimize downtime, with local dealers ready to handle routine service and warranty repairs when you need them. It’s one more way we help keep you moving.
- Extendable Tracks
- Extendable Backfill Blade
- Swing Boom
- 1st Auxiliary Circuit
- Zero Tail Swing
- TOPS/FOPS Certified Canopy
- Powerful Yanmar Engine
Specifications and Brochure
Technical Specifications
| Technical Specifications | |
| Operating Weight |
1,925 kg
4,244 lbs |
| Ground Pressure |
30 kPa
4.4 psi |
| Engine |
Yanmar 3TNV80F
|
| Displacement |
1.27 L
77.5 in3 |
| Gross Power |
14.6 kW
19.6 HP |
| Net Power |
13.6 kW
18.2 HP |
| Hydraulics |
Load Sensing with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
66.0 L/min
17 gal/min |
| Operating Pressure (maximum) |
24.5 MPa
3,553 psi |
| Auxiliary Flow (maximum) |
40 L/min
11 gal/min |
| Auxiliary Pressure (maximum) |
16 MPa
2,321 psi |
| Travel Motor |
Axial Piston
|
| Travel Pressure (maximum) |
24.5 MPa
3,553 psi |
| Travel Speeds (maximum) |
3.0 / 4.0 km/hr
1.9 / 2.5 mph |
| Travel Effort (maximum) |
15.6 kN
3,507 lbf |
| Grade Capability (maximum) |
30°
|
| Swing Motor |
Axial Piston
|
| Swing Pressure (maximum) |
16.2 MPa
2,350 psi |
| Swing Speed (maximum) |
10 RPM
|
| Undercarriage (standard) |
Belted Rubber Track
|
| Track Shoe Width (standard) |
230 mm
9” |
| Track Rollers (per side) |
3
|
| Carrier Rollers (per side) |
–
|
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
1 770 mm
5’ 10” |
| Stick Length |
1 160 mm
3’ 10” |
| A Transport Length |
3 515 mm
11’ 6” |
| B Transport Width |
980 / 1 350 mm
3’ 3” / 4’ 5” |
| C Transport Height |
2 370 mm
7’ 9” |
| D Upper Structure Width |
980 mm
3’ 3” |
| E Blade Height |
270 mm
11” |
| F Track Width (standard shoe) |
230 mm
9” |
| G Track Gauge |
750 / 1 120 mm
2’ 6” / 3’ 8” |
| H Ground Clearance (minimum) |
160 mm
6” |
| I Tail Swing Radius |
675 mm
2’ 3” |
| J Track Length on Ground |
1 220 mm
4’ 0” |
| K Track Length |
1 585 mm
5’ 2” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
21.0 L
5.5 gal |
| Hydraulic Tank Capacity |
21.0 L
5.5 gal |
| Engine Oil Capacity |
3.4 L
0.9 gal |
| Cooling System Capacity |
5.4 L
1.4 gal |
