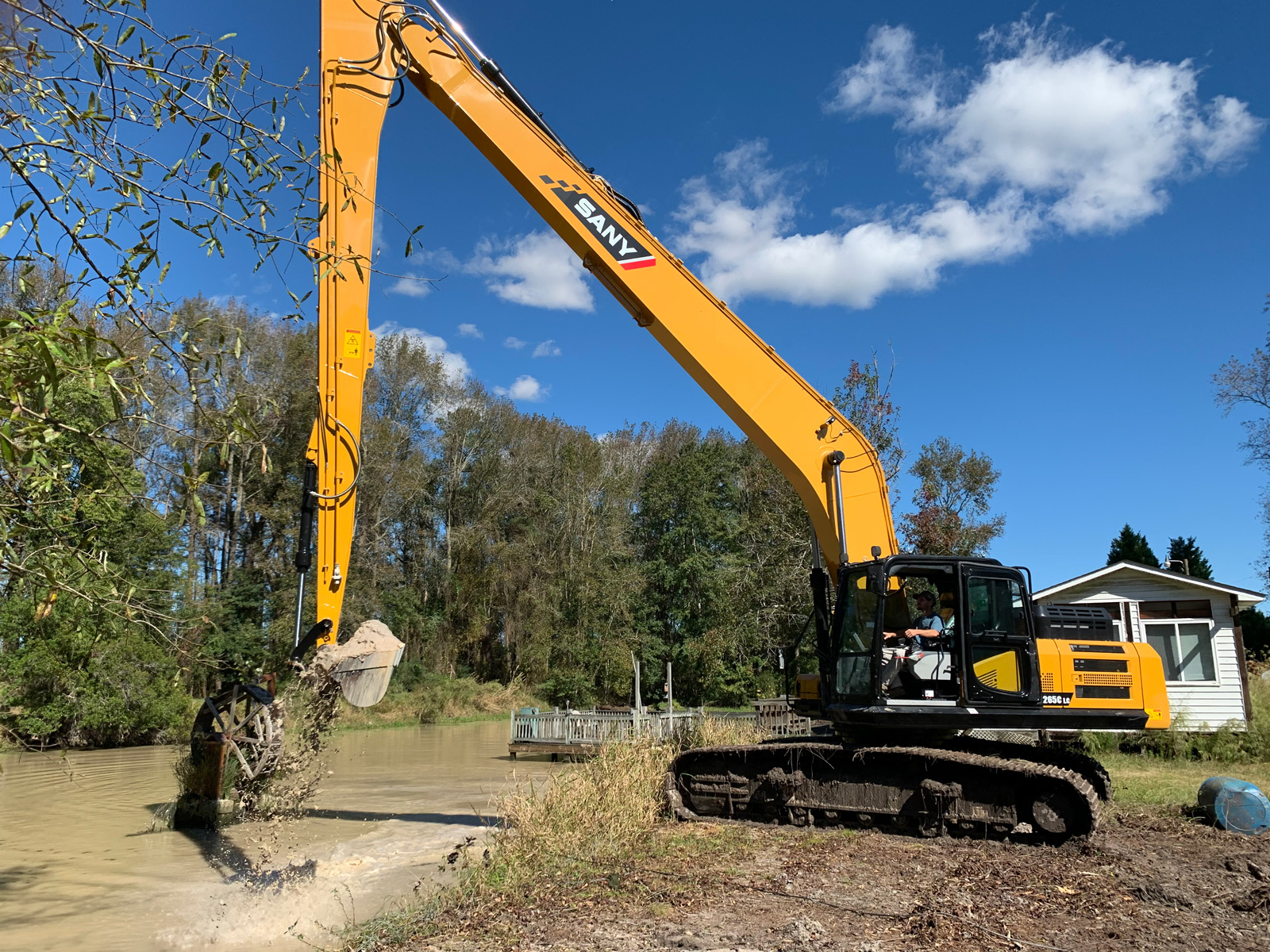

SY265C LONG REACH
69,446 lb | 190.4 HP | 43′ 8″ Dig Depth
The SY265C Long Reach excavator is built for deep digging and heavy-duty applications, with a reach of over 54 ft and a maximum digging depth of more than 43 ft. Powered by a 190.4 hp Cummins engine and optimized positive flow hydraulics, it delivers exceptional performance and a bucket breakout force of 19,334 lbf. Ideal for complex excavation and demolition jobs, the SY265C Long Reach combines reach and power for maximum productivity.
- Powerful, Robust And Reliable Powertrain & Hydraulic Components For Long Life In the Most Demanding Applications
- Optimized Positive Flow Hydraulics Improve Operating Efficiency By Up to 5% And Fuel Efficiency by Up To 10%
- A High-Performance Cooling System Equipped With Electronic Control Fan Clutch Provides Clean, Quiet Operation
- Selectable Working Modes Match Machine Performance To The Application, Maximizing Productivity And Minimizing Operating Costs
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
9 800 mm
32′ 2″ |
| Stick (Arm) Length |
7 500 mm
24′ 7″ |
| A Transport Length |
14 059 mm
46′ 2″ |
| B Transport Width |
3 390 mm
11′ 1″ |
| C Transport Height |
3 665 mm
12′ |
| D Upper Structure Width |
3 045 mm
10′ |
| E Cab Height |
3 080 mm
10′ 1″ |
| F Track Width (standard shoe) |
800 mm
31″ |
| G Track Gauge |
2 590 mm
8′ 6″ |
| H Ground Clearance (minimum) |
467 mm
19″ |
| I Tail Swing Radius |
3 119 mm
10′ 3″ |
| J Track Length on Ground |
3 833 mm
12′ 7″ |
| K Track Length |
4 636 mm
15′ 3″ |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
31 500 kg
69,446 lbs |
| Ground Pressure |
46.3 kPa
6.7 psi |
| Engine |
Cummins QSB 6.7 T4F
|
| Displacement |
6.7 L
408.9 in3 |
| Gross Power |
142 kW
190.4 HP |
| Hydraulics |
Positive Flow Control with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
520.0 L/min
137.4 gal/min |
| Operating Pressure (maximum) |
34.3 MPa
4,975 psi |
| Power Boost Pressure (maximum) |
37.3 MPa
5,410 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
34.3 MPa
4,975 psi |
| Travel Speeds (maximum) |
3.5 / 5.5 km/hr
2.2 / 3.4 mph |
| Travel Effort (maximum) |
227.0 kN
51,032 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
27.5 MPa
3,989 psi |
| Swing Speed (maximum) |
10.6 RPM
|
| Undercarriage (standard) |
Steel Track
|
| Track Shoe width (standard) |
800 mm
31″ |
| Track Rollers (per side) |
9
|
| Carrier Rollers (per side) |
2
|
