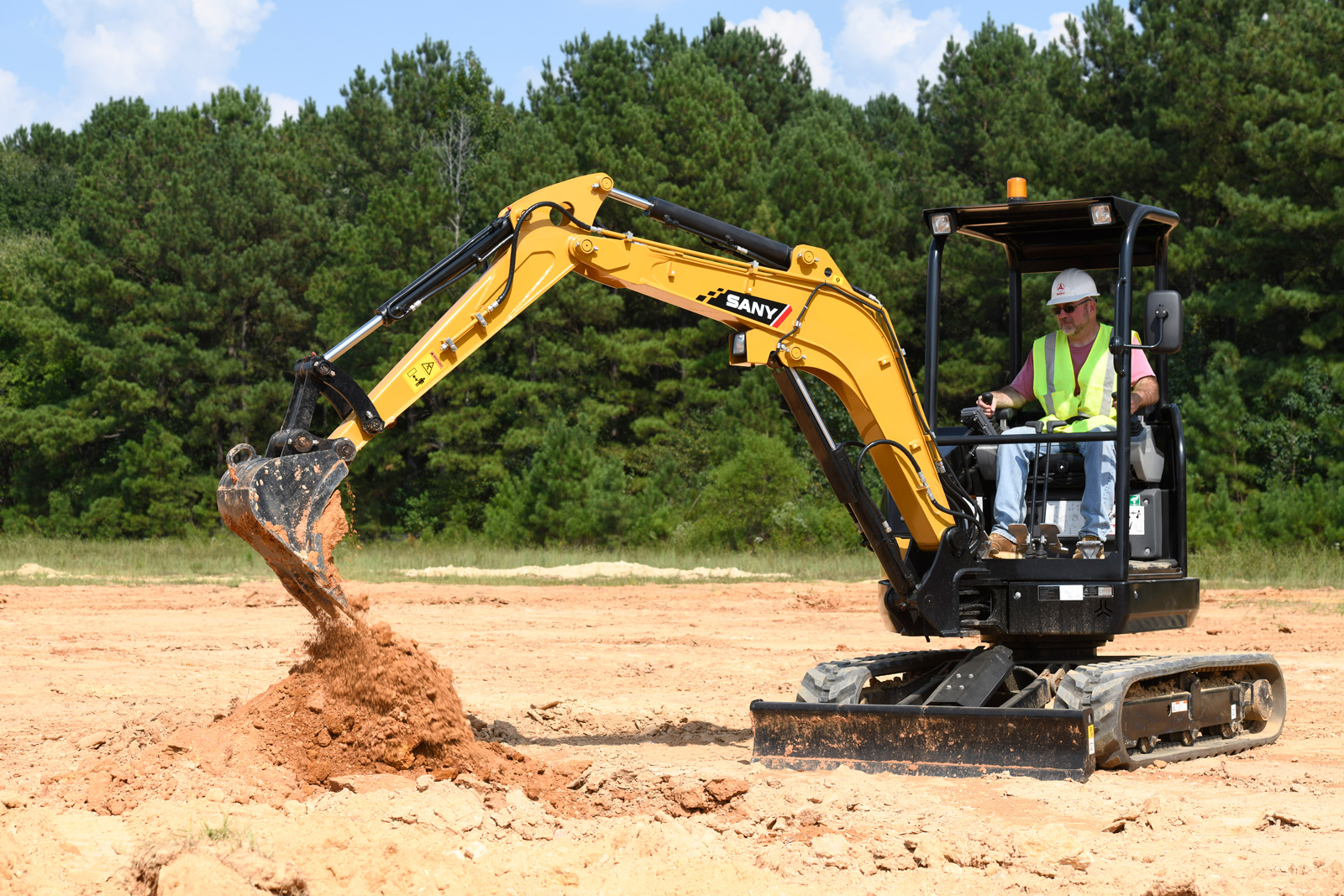

SY26U
6,085 lb | 19.4 hp | 9′ 3″ Dig Depth
SANY Equipment is built to last and backed with the coverage to prove it. Our Standard warranties help protect your investment and minimize downtime, with local dealers ready to handle routine service and warranty repairs when you need them. It’s one more way we help keep you moving.
- Swing Boom Functionality
- True Zero Tail Swing
- Trailer Ready With Clear Tie-Down Points to Ensure Safety During Transport
- Primary Auxiliary Circuit To Run Powered Attachments
- 12” Rubber Tracks For the Preservation of Finished Surfaces
- Weight-Adjustable Suspension Seat
- Powerful Yanmar Engine
Specifications and Brochure
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
2 760 kg
6,085 lbs |
| Ground Pressure |
25.5 kPa
3.7 psi |
| Engine |
Yanmar 3TNV80F
|
| Displacement |
1.2 L
77.5 in3 |
| Gross Power |
15.2 kW
20.4 HP |
| Net Power |
14.5 kW
19.4 HP |
| Hydraulics |
Load Sensing with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
78 L/min
20.6 gal/min |
| Operating Pressure (maximum) |
24.5 MPa
3,553 psi |
| Auxiliary Flow (maximum)* |
42.5 L/min
11 gal/min |
| Auxiliary Pressure (maximum) |
25 MPa
3626 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
24.5 MPa
3,553 psi |
| Travel Speeds (maximum) |
2.6 / 4.5 km/hr
1.6 / 2.8 mph |
| Travel Effort (maximum) |
20 kN
4,496 lbf |
| Grade Capability (maximum) |
25°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
19.6 MPa
2,843 psi |
| Swing Speed (maximum) |
10 RPM
|
| Undercarriage (standard) |
Belted Rubber Track
|
| Track Shoe Width (standard) |
300 mm
12” |
| Track Rollers (per side) |
4
|
| Carrier Rollers (per side) |
1
|
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
2 100 mm
6’ 11” |
| Stick Length |
1 300 mm
4’ 3” |
| A Transport Length |
4285 mm
14’ 1” |
| B Transport Width |
1 550 mm
5’ 1” |
| C Transport Height |
2 430 mm
8’ |
| D Upper Structure Width |
1 375 mm
4’ 6” |
| E Blade Height |
300 mm
12” |
| F Track Width (standard shoe) |
300 mm
12” |
| G Track Gauge |
1 250 mm
4’ 1” |
| H Ground Clearance (minimum) |
290 mm
11” |
| I Tail Swing Radius |
775 mm
2’ 7” |
| J Track Length on Ground |
1 560 mm
5’ 1” |
| K Track Length |
1 960 mm
6’ 5” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
34.0 L
9.0 gal |
| Hydraulic Tank Capacity |
30.0 L
7.9 gal |
| Engine Oil Capacity |
3.4 L
0.9 gal |
| Cooling System Capacity |
4.1 L
1.1 gal |
