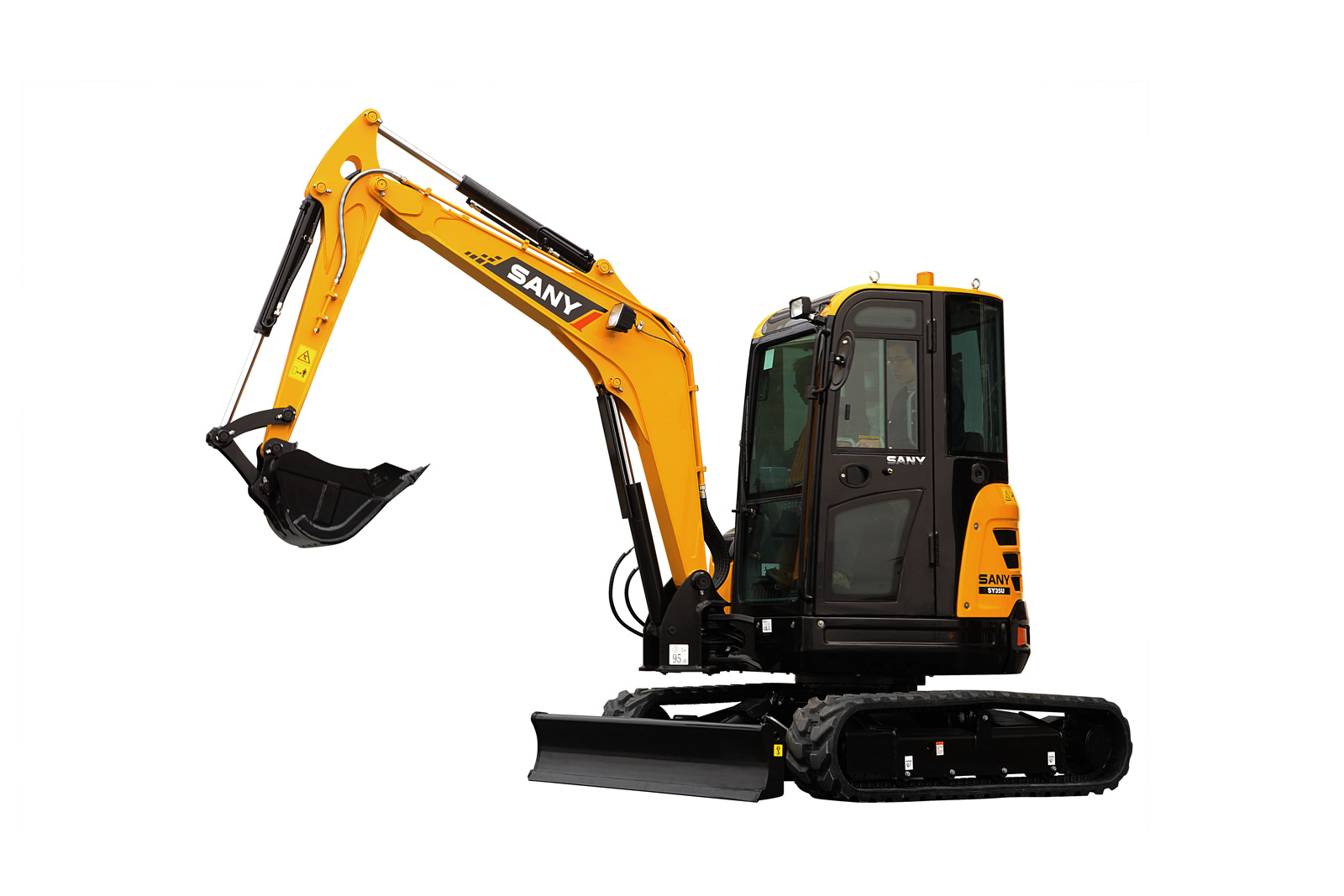

SY35U
8,499 lb | 23.3 hp | 10′ 2″ Dig Depth
The SY35U mini excavator delivers powerful lift and dig performance in a compact, zero tail swing design. With a swing boom for working near obstructions and support for multiple hydraulic attachments, it’s built for versatility on tight job sites. Trailer-ready tie-down points make transport simple, while the cab model includes heat and air for year-round comfort. Backed by a 5-year/5,000-hour standard warranty, the SY35U is built to perform and protect your investment.
- Swing Boom
- True Zero Tail Swing
- 4-Way Angle Blade
- Primary Auxiliary Circuit To Run Powered Attachments
- Quick-Coupler Plumbing To the End of The Stick
- Pilot Controls With Pattern Change Valve
- Load Sensing Hydraulics
- Cylinder Guards For Increased Protection
- 12” Rubber Tracks For the Preservation of Finished Surfaces
- Bright LED light Package
- Powerful Yanmar Engine
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
2 540 mm
8’ 4” |
| Stick Length |
1 400 mm
4’ 7” |
| A Transport Length |
4 910 mm
16’ 2” |
| B Transport Width |
1 720 mm
5’ 8” |
| C Transport Height |
2 515 mm
8’ 3” |
| D Upper Structure Width |
1 550 mm
5’ 1” |
| E Blade Height |
350 mm
14” |
| F Track Width (standard shoe) |
300 mm
12” |
| G Track Gauge |
1 420 mm
4’ 8” |
| H Ground Clearance (minimum) |
295 mm
12” |
| I Tail Swing Radius |
860 mm
2’ 10” |
| J Track Length on Ground |
1 670 mm
5’ 6” |
| K Track Length |
2 155 mm
7’ 1” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
40.0 L
10.6 gal |
| Hydraulic Tank Capacity |
40.0 L
10.6 gal |
| Engine Oil Capacity |
6.7 L
1.8 gal |
| Cooling System Capacity |
6.5 L
1.8 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight (Cab) |
3 855 kg
8,499 lbs |
| Operating Weight (Canopy) |
3 795 kg
8,367 lbs |
| Ground Pressure |
32.0 kPa
4.6 psi |
| Engine |
Yanmar 3TNV88
|
| Displacement |
1.64 L
97.6 in3 |
| Gross Power |
18.2kW
24.4 HP |
| Net Power |
17.4 kW
23.3 HP |
| Hydraulics |
Load Sensing with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
88.0 L/min
23.2 gal/min |
| Operating Pressure (maximum) |
24.5 MPa
3,553 psi |
| Auxiliary Flow (maximum)* |
70 L/min
18 gal/min |
| Auxiliary Pressure (maximum) |
20 MPa
2,901 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
24.5 MPa
3,553 psi |
| Travel Speeds (maximum) |
2.4 / 4.4 km/hr
1.5 / 2.7 mph |
| Travel Effort (maximum) |
36.8 kN
8,273 lbf |
| Grade Capability (maximum) |
30°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
20.6 MPa
2,988 psi |
| Swing Speed (maximum) |
9 RPM
|
| Undercarriage (standard) |
Belted Rubber Track
|
| Track Shoe Width (standard) |
300 mm
12” |
| Track Rollers (per side) |
4
|
| Carrier Rollers (per side) |
1
|
