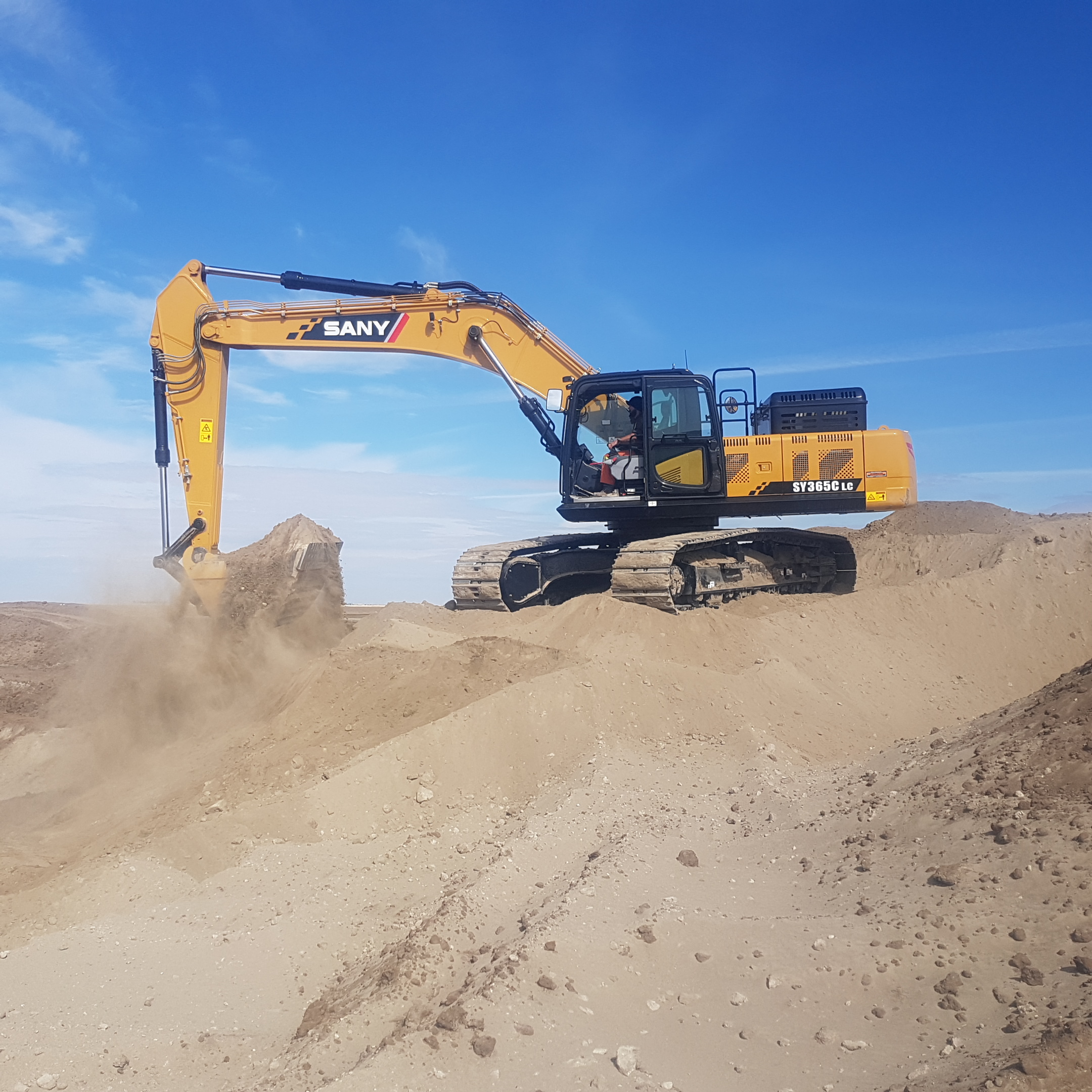

SY365C
74,075 lbs | 22′ 4″ Dig Depth
The SY365C large excavator is built for year-round performance in any climate or terrain. Designed for reliability and versatility, it handles earthmoving, demolition, and road-building with ease. Selectable work modes and an efficient design optimize performance, increasing productivity while reducing operating costs.
- Powerful, Robust And Reliable Powertrain & Hydraulic Components For Long Life In the Most Demanding Applications
- Optimized Positive Flow Hydraulics Improve Operating Efficiency By Up to 5% And Fuel Efficiency by Up To 10%
- A High-Performance Cooling System Equipped With Electronic Control Fan Clutch Provides Clean, Quiet Operation
- Selectable Working Modes Match Machine Performance To The Application, Maximizing Productivity And Minimizing Operating Costs
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
6 470 mm
21’ 3” |
| Stick (Arm) Length |
3 178 mm
10’ 5” |
| A Transport Length |
11 100 mm
36’ 5” |
| B Transport Width |
3 390 mm
11’ 1” |
| C Transport Height |
3 352 mm
11’ 0” |
| D Upper Structure Width |
3 020 mm
9’ 11” |
| E Cab Height |
3 140 mm
10’ 4” |
| F Track Width (standard shoe) |
800 mm
31” |
| G Track Gauge |
2 590 mm
8’ 6” |
| H Ground Clearance |
550 mm
1’ 10” |
| I Tail Swing Radius |
3 300 mm
10’ 10” |
| J Track Length on Ground |
4 140 mm
13’ 7” |
| K Track Length |
5 055 mm
16’ 7” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
540.0 L
142.7 gal |
| DEF Tank Capacity |
38.0 L
10.0 gal |
| Hydraulic Tank Capacity |
340.0 L
89.8 gal |
| Engine Oil Capacity |
29.0 L
7.7 gal |
| Cooling System Capacity |
48.0 L
12.7 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
36 700 kg
80,910 lbs |
| Ground Pressure |
48.7 kPa
7.1 psi |
| Engine |
Cummins QSL9 T4F
|
| Displacement |
8.9 L
543.1 in3 |
| Net Power |
205 kW
275 HP |
| Hydraulics |
Negative Flow Control w/Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
740.0 L/min
195.5 gal/min |
| Operating Pressure (maximum) |
34.3 MPa
4,975 psi |
| Power Boost Pressure (maximum) |
37.3 MPa
5,410 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
34.3 MPa
4,975 psi |
| Travel Speeds (maximum) |
3.4 / 5.2 km/hr
2.1 / 3.2 mph |
| Travel Effort (maximum) |
214.0 kN
48,109 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Axial Piston Motor with Swing Brake
|
| Swing Pressure (maximum) |
27.5 MPa
3,989 psi |
| Swing Speed (maximum) |
9.8 RPM
|
| Undercarriage (standard) |
Steel Track
|
| Track Shoe Width (standard) |
800 mm
31” |
| Track Rollers (per side) |
9
|
| Carrier Rollers (per side) |
2
|
