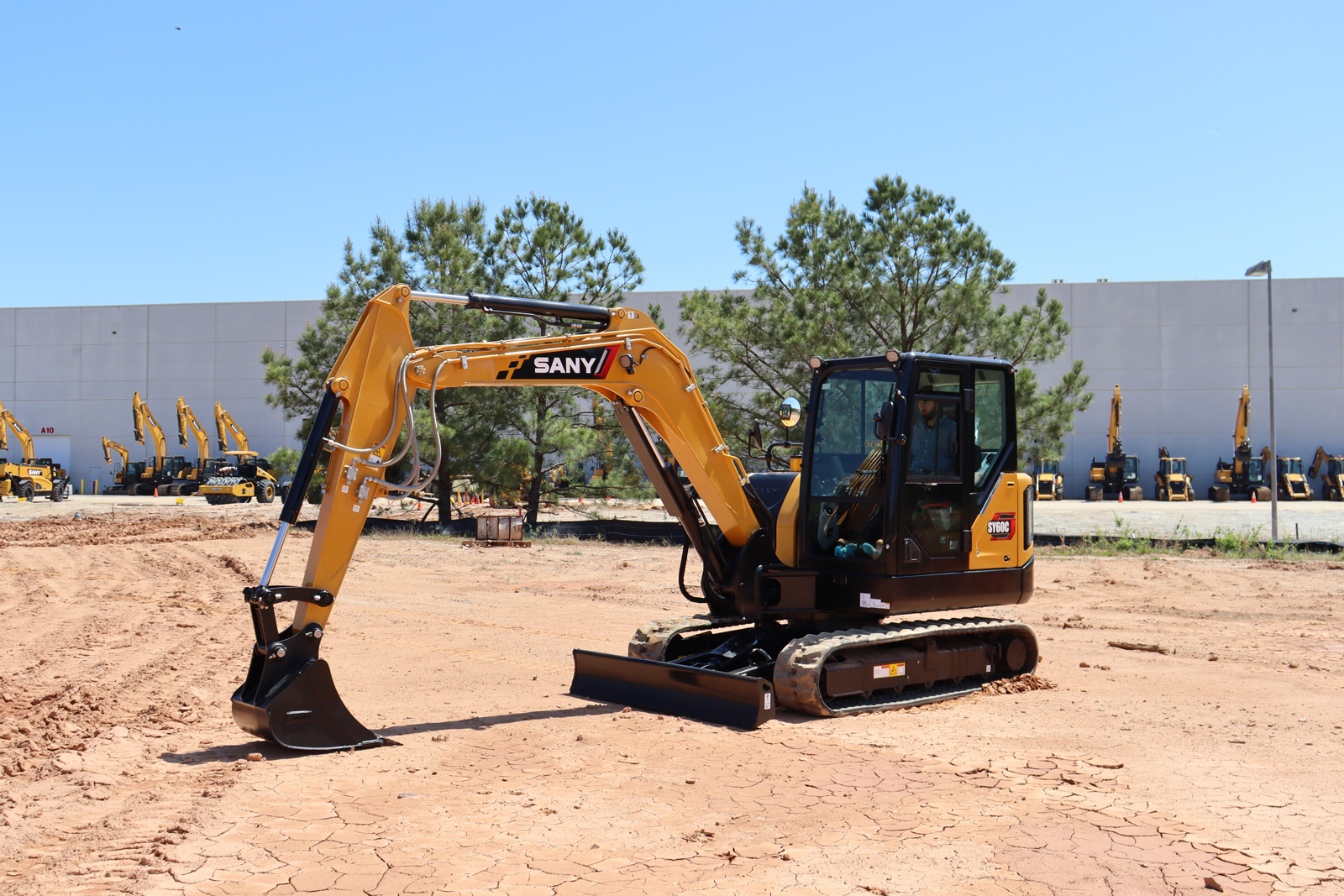

SY60C
13,228 lb | 55.1 HP | 13′ 1″ Dig Depth
The SY50U zero tail swing excavator delivers high performance in a compact design, ideal for landscaping, light forestry, agriculture, small construction, and utility work. Its swing boom and maneuverable footprint allow efficient operation in tight spaces, while the backfill blade with float function improves grading and backfilling. Quick-coupler plumbing and adjustable auxiliary flow make attachment changes fast and versatile, supporting thumbs, brush cutters, and breakers. Powered by a reliable Yanmar engine with auto-idle, the SY50U offers fuel-efficient, dependable performance. Backed by a 5-year/5,000-hour standard warranty, it provides long-lasting value on every job site.
- Swing Boom
- Conventional Tail Swing
- Dozer Blade With Float Function
- Primary Auxiliary Circuit
- Quick-Coupler Plumbing To the End of The Stick
- Pilot Controls With Pattern Change Valve
- Load Sensing Hydraulics
- Cylinder Guards For Increased Protection
- 16” Rubber Tracks
- Touchscreen Display With Backup Camera
- Bright LED light Package
- Powerful Yanmar Engine
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
3 000 mm
9’ 10” |
| Stick Length |
1 700 mm
5’ 7” |
| A Transport Length |
6 015 mm
19’ 9” |
| B Transport Width |
2 005 mm
6’ 7” |
| C Transport Height |
2 645 mm
8’ 8” |
| D Upper Structure Width |
1 860 mm
6’ 1” |
| E Blade Height |
340 mm
13” |
| F Track Width (standard shoe) |
400 mm
16” |
| G Track Gauge |
1 600 mm
5’ 3” |
| H Ground Clearance (minimum) |
330 mm
13” |
| I Tail Swing Radius |
1 640 mm
5’ 5” |
| J Track Length on Ground |
2 045 mm
6’ 9” |
| K Track Length |
2 545 mm
8’ 4” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
130.0 L
34.3 gal |
| Hydraulic Tank Capacity |
85.0 L
22.5 gal |
| Engine Oil Capacity |
9.6 L
2.5 gal |
| Cooling System Capacity |
5.6 L
1.5 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
6 100 kg
13,448 lbs |
| Ground Pressure |
34.6 kPa
5.0 psi |
| Engine |
4LE2X
|
| Displacement |
2.18 L
133.0 in3 |
| Gross Power |
43.0 kW
57.6 HP |
| Net Power |
41.7 kW
55.9 HP |
| Hydraulics |
Load Sensing with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
142.7 L/min
37.7 gal/min |
| Operating Pressure (maximum) |
24.5 MPa
3,553 psi |
| Auxiliary Flow (maximum)* |
90 L/min
23.8 gal/min |
| Auxiliary Pressure (maximum) |
25 MPa
3,626 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
24.5 MPa
3,553 psi |
| Travel Speeds (maximum) |
2.4 / 3.7 km/hr
1.5 / 2.3 mph |
| Travel Effort (maximum) |
47.2 kN
10,611 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
19.1 MPa
2,770 psi |
| Swing Speed (maximum) |
9.6 RPM
|
| Undercarriage (standard) |
Belted Rubber Track
|
| Track Shoe Width (standard) |
400 mm
16” |
| Track Rollers (per side) |
5
|
| Carrier Rollers (per side) | |
