SY95C
20,238 lb | 66.4 hp | 14′ 2″ Dig Depth

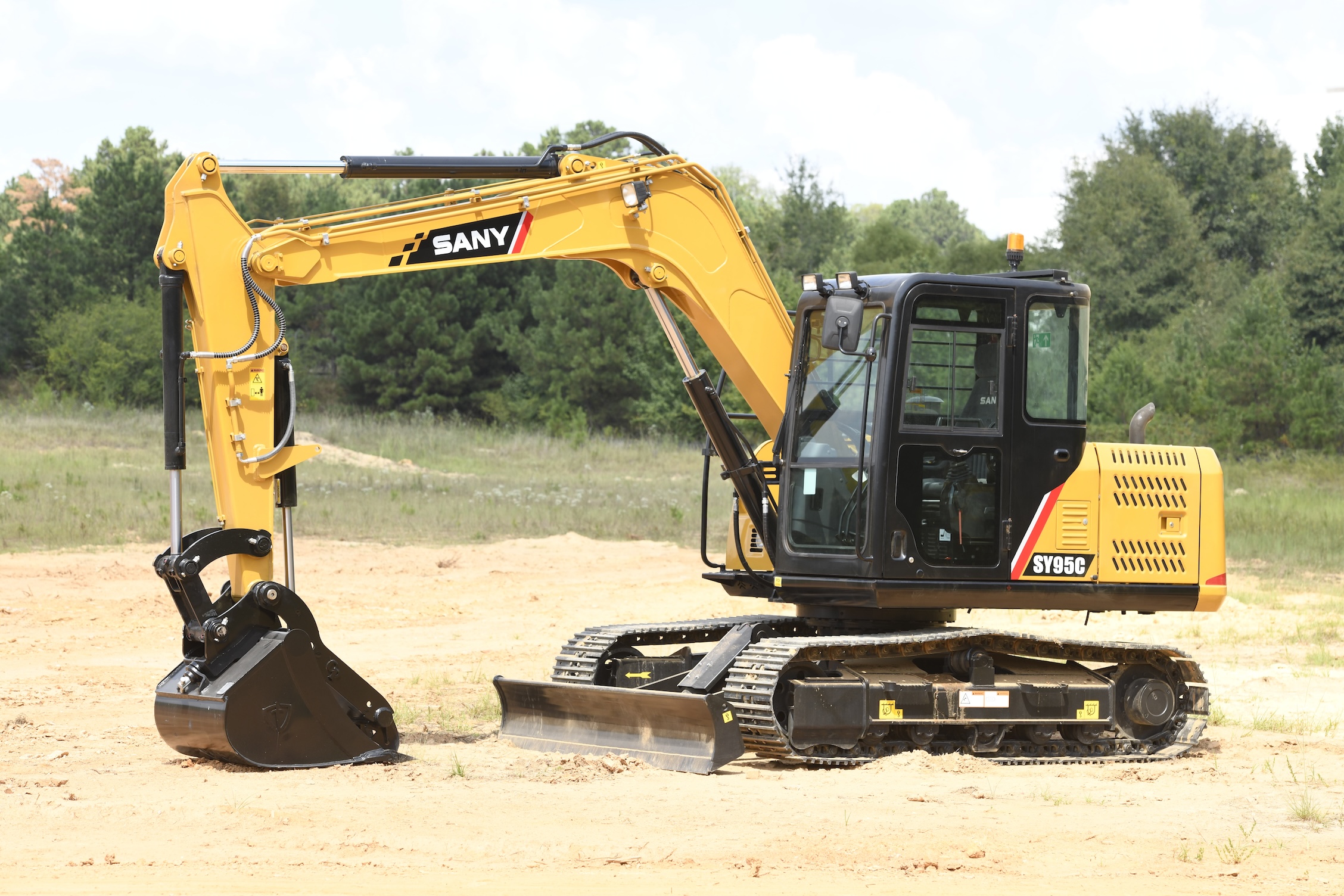

The SY95C compact excavator is ideal for small- and mid-sized projects, delivering power, performance, and efficiency. Its load-sensing hydraulics optimize operation, improving working speed and reducing fuel consumption by up to 10%. With a reliable powertrain and robust hydraulic system, the SY95C handles tough tasks and challenging terrain with ease.
- Fixed Boom
- Conventional Tail Swing
- Dozer Blade With Float Function
- 1-Way And 2-Way Primary Auxiliary Circuit
- Quick-Coupler Plumbing To the End of The Stick
- No DEF
- Blade Float
- Backup Camera
- 7” Touch Screen Display
- Powerful Yanmar Engine
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
5 920 mm
12’ 10” |
| Stick (Arm) Length |
1 700 mm
5’ 7” |
| A Transport Length |
6 560 mm
21’ 6” |
| B Transport Width |
2 260 mm
7’ 5” |
| C Transport Height |
2 720 mm
8’ 11” |
| D Upper Structure Width |
2 160 mm
7’ 1” |
| E Blade Height |
420 mm
1’ 5” |
| F Track Width (standard shoe) |
450 mm
18” |
| G Track Gauge |
1 810 mm
5’ 11” |
| H Ground Clearance (minimum) |
360 mm
1’ 2” |
| I Tail Swing Radius |
1 885 mm
6’ 2” |
| J Track Length on Ground |
2 340 mm
7’ 8” |
| K Track Length |
2 980 mm
9’ 9” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
160.0 L
42.3 gal |
| Hydraulic Tank Capacity |
120.0 L
31.7 gal |
| Engine Oil Capacity |
10.0 L
2.6 gal |
| Cooling System Capacity |
12.0 L
3.2 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
9 180 kg
20,238 lbs |
| Ground Pressure |
37 kPa
5.4 psi |
| Engine |
Yanmar 4TN98CT
|
| Displacement |
3.3 L
201.4 in3 |
| Gross Power |
53.7 kW
72.0 HP |
| Net Power |
49.5 kW
66.4 HP |
| Hydraulics |
Load Sensing with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
199.5 L/min
52.7 gal/min |
| Operating Pressure (maximum) |
26.3 MPa
3,814 psi |
| Auxiliary Flow (maximum)* |
110 L/min
29.1 gal/min |
| Auxiliary Pressure (maximum) |
28 MPa
4,061 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
26.3 MPa
3,814 psi |
| Travel Speeds (maximum) |
2.9 / 5.0 km/hr
1.8 / 3.1 mph |
| Travel Effort (maximum) |
83.0 kN
18,659 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
21.5 MPa
3,118 psi |
| Swing Speed (maximum) |
13.6 RPM
|
| Undercarriage (standard) |
Steel Track
|
| Track Shoe Width (standard) |
450 mm
18” |
| Track Rollers (per side) |
5
|
| Carrier Rollers (per side) |
1
|
