SMG200C-8
45,107 lbs | 253 hp | 14′ Standard Moldboard

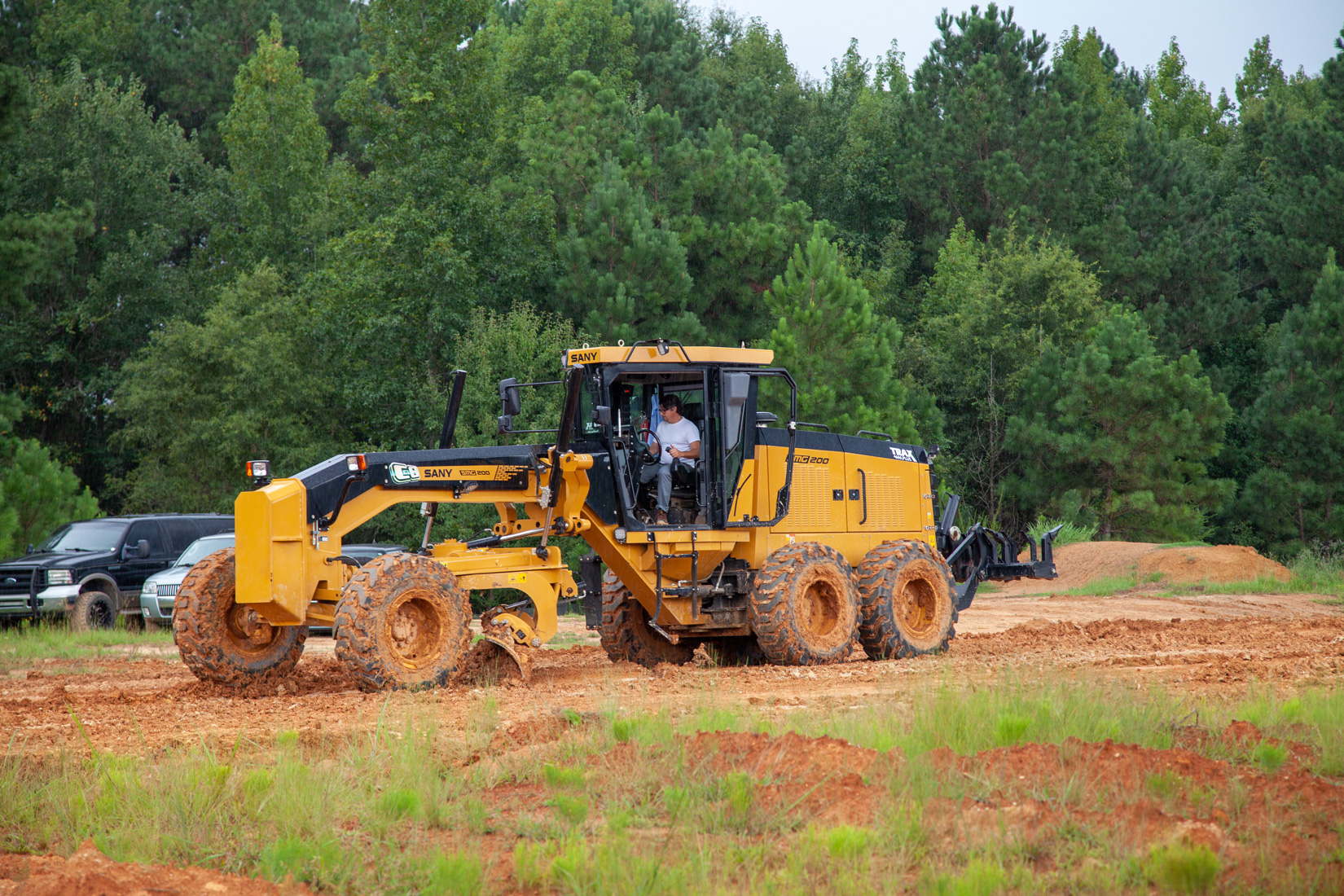

The SANY SMG200C‑8 motor grader is built for municipal and rental customers seeking reliability and high performance. Its intuitive two‑joystick controls provide precise operation for ditch cleaning, road smoothing, and grading tasks. With excellent moldboard visibility, a durable Cummins engine, Kawasaki pumps, and Danfoss controls, the SMG200C‑8 delivers dependable, efficient performance for a variety of road construction projects.
Specifications and Brochure
Overall Dimensions
| OVERALL DIMENSIONS | |
| A Height to Top of Cab |
3 498 mm
11’ 6” |
| B Height of Exhaust Pipe |
2 912 mm
9’ 7” |
| C Height of Top of Cylinders |
3 110 mm
10’ 2” |
| D Height Over ROPS |
3 498 mm
11′ 6” |
| E Width Over Std Tires |
2 725 mm
8’ 11” |
| F Width to Tire Center |
2 185 mm
7’ 2” |
| G Wheelbase |
6 300 mm
20’ 8” |
| H Rear Wheelbase |
1 524 mm
5’ |
| i Front Axle to Blade |
2 520 mm
8’ 3” |
| J Length (F/R) |
9 187 mm
30’ 2” |
| K Overall Length |
10 572 mm
34’ 8” |
| L Ground Clearance |
370 mm
15” |
| M Width—Moldboard |
4 270 mm
14’ |
Technical Specifications
| ENGINE | |
| QSL 9 Cummins Engine |
Standard
|
| Emissions Standards |
U.S. EPA Tier 4 Final / EU Stage V
|
| Dual-element, dry air filter & Engine air precleaner |
Standard
|
| Batteries (2x12V) 24 Volt |
Standard
|
| Air-to-air after cooler (ATAAC) & Turbocharger |
Standard
|
| Diesel Exhaust Fluid (DEF) Tank |
18.92 L
5 gal |
| Fuel Tank Capacity |
330 L
89 gal |
| Fuel System: Priming pump, Water separator, Severe-duty filter |
Standard
|
| 500-hour engine-oil-change interval (Remote ecology drain) |
Standard
|
| Engine coolant protection to –37°C (–34°F) |
Standard
|
| POWERTRAIN | |
| SANY power shift transmission (8F/6R) |
Standard
|
| Tandem drive & Rear axle modular |
Standard
|
| Manual differential lock |
Standard
|
| Parking Brake (Spring-applied, hydraulically released) |
Standard
|
| Wet-multiple disc brakes |
Standard
|
| Tire size 17.5 R25 |
Standard
|
| Secondary steering |
Standard
|
| Sealed and lubricated tandem chain |
Standard
|
| OTHER STANDARD EQUIPMENT ITEMS | |
| Moldboard Width |
4 270 mm (Standard 14’)
3 658 mm (Optional 12’) |
| Rippers / Scarifiers |
5 Rippers / 9 Scarifiers
|
| Endbits |
Standard
|
| Overload protection (breakaway)—moldboard |
Standard
|
