SSR80
15,752 lbs | 68 HP @ 2,100 RPM | 66″ Drum

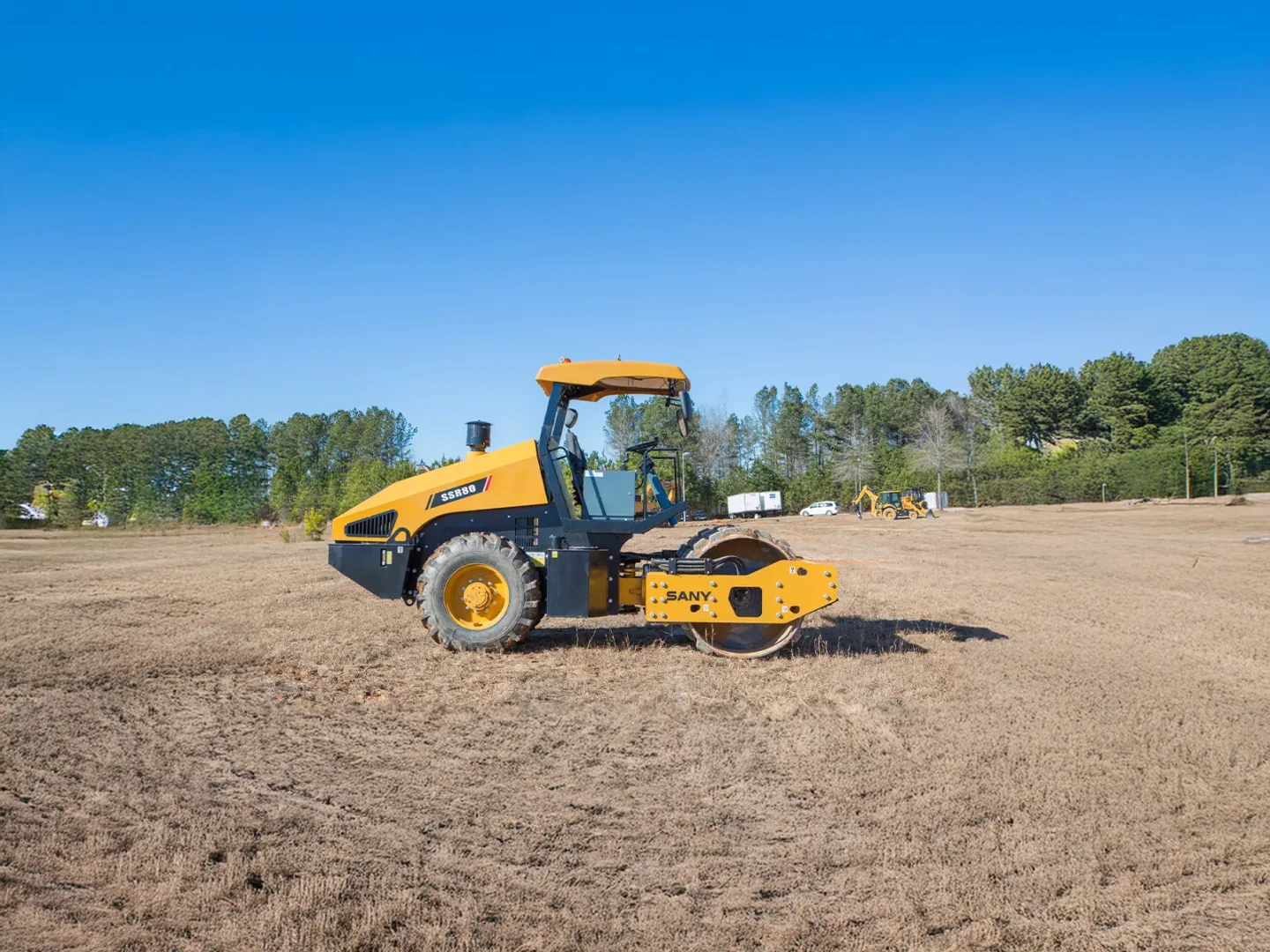

The SANY SSR80 single drum roller is a reliable compaction solution built for efficiency and long life in road construction and earthmoving applications. With an operating weight of 7,650 kg, 53.7 kW of rated power, and a centrifugal force of 132/110 kN, it delivers consistent compaction performance for soil and aggregate bases. Designed for durability and operator comfort, the SSR80 features robust construction, intuitive controls, and safety‑focused design elements that make it suitable for a range of job sites. Its compact size and efficient powertrain help you achieve smooth, productive results while keeping operating costs under control.
Specifications and Brochure
Overall Dimensions
| OVERALL DIMENSIONS | |
| A Overall Length |
5 160 mm
16’ 11” |
| B Wheelbase |
2 675 mm
8’ 9” |
| C Overall Height Smooth Drum |
3 050 mm
10’ |
| C Overall Height with Padfoot |
3 125 mm
10’ 3” |
| D Drum Width |
1 676 mm
66” |
| E Overall Width |
1 830 mm
6’ |
| F Ground Clearance |
376 mm
1’ 3” |
| Drum Diameter |
1 215 mm
4’ |
| Drum Shell Thickness |
20 mm
0.8” |
| Inside Turning Radius |
3 250 mm
10’ 8” |
| Min. Outside Turning Radius |
4 950 mm
16’ 3” |
| Curb Clearance |
376 mm
1’ 3” |
Technical Specifications
| OPERATOR’S STATION | |
| Open platform with handrails/guardrails |
Standard
|
| 3” Seatbelt |
Standard
|
| ROPS/FOPS canopy |
Standard
|
| 12 and 24v outlets (60 watt, 5 amp) |
Standard
|
| Illuminated gauges (DEF, Engine Coolant, Fuel levels) |
Standard
|
| Horn |
Standard
|
| Hour meter, electric |
Standard
|
| External rearview mirrors |
Standard
|
| Adjustable, tilting steering wheel |
Standard
|
| Multifunction color LCD monitor (Diagnostics/Multi-language) |
Standard
|
| Single lever control for travel and vibration |
Standard
|
| Engine check and coolant temperature indicators |
Standard
|
| Audible alarms/Indicators: Low alternator charge, Low fuel, Low DEF |
Standard
|
| Indicator lights: Fault code, Fuel rate, Wiper mode, Work lights, Work mode |
Standard
|
| Hydraulic oil filter restriction indicator light |
Standard
|
| Cup holder |
Standard
|
