STH1256A
12,000 lbs | 121 hp | 56′ 2″ Max Lift

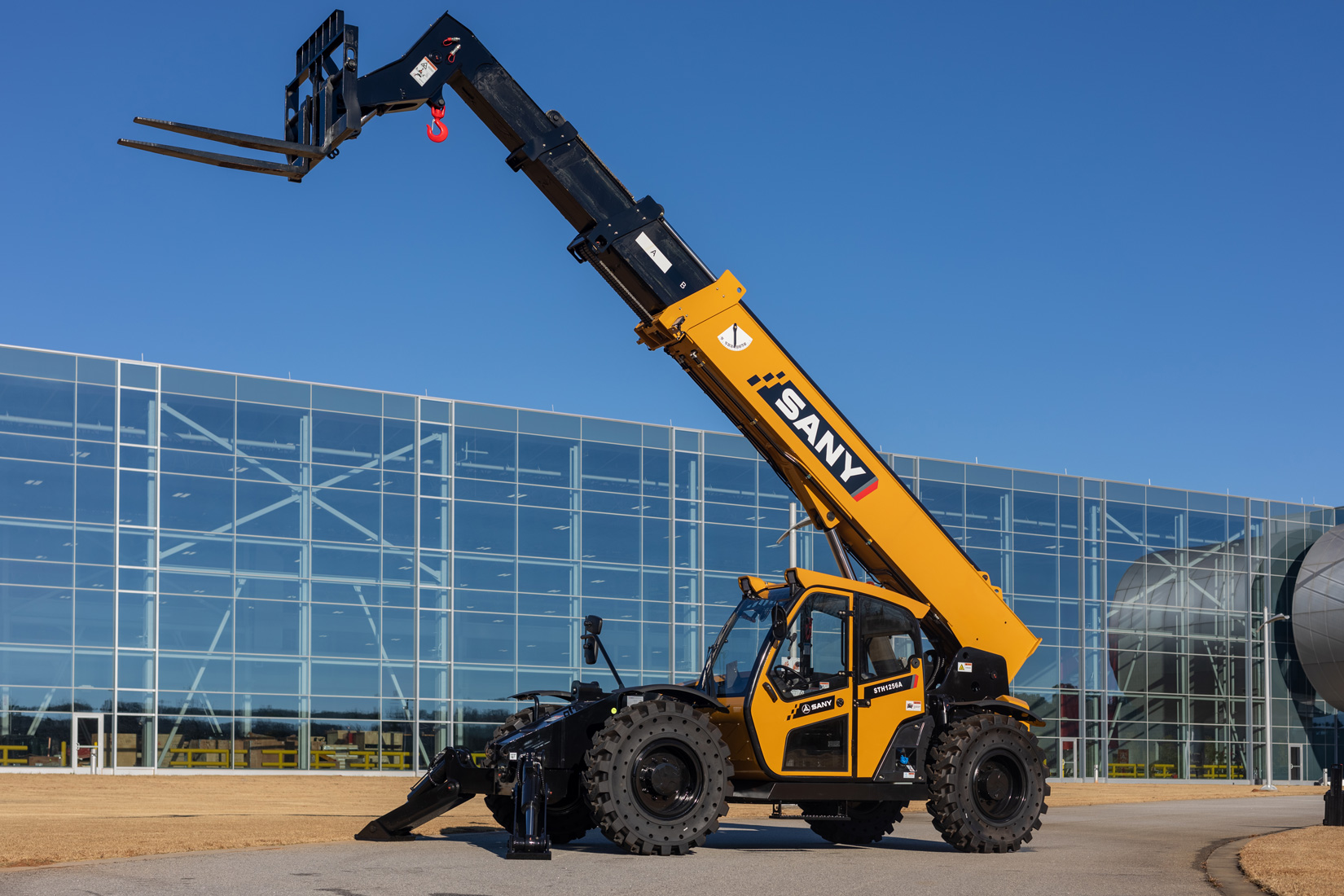

The SANY STH1256A telehandler is built for the toughest jobs, tested for durability with over 10,000 laps on rough terrain and 20,000 lift cycles at full load. Operators enjoy excellent visibility of all four tires and clear rear views, while standard features like a wide-angle rearview camera, reverse sensing system, LED work lights, flashing beacon, and lift hook enhance safety and efficiency. With optional open or enclosed cabs and a variety of fork carriages and attachments, the STH1256A can be configured to meet the demands of any job site.
- Duetz Engine, Dana Axles And Transmission, Parker Hydraulics, And A Kawasaki Load Sense Piston Pump
- Large, Spacious Cab Offers Improved Operator Comfort And Reduced Fatigue
- Axle-Mounted Stabilizers Allow For Smoother Frame Levelling When Deployed
- Wide-Angle Rear Camera Gives Unobstructed View Behind The Machine
- Reverse Sensing System
- Simple Maintenance With Easy Fluid Level Check And Convenient Access To Maintenance Items With Side-Mounted Engine
Specifications and Brochure
Overall Dimensions
| DIMENSIONS (STH1256A) | |
| Maximum Lift Height |
17.13 m
56′ 2″ |
| Maximum Forward Reach |
13.08 m
42′ 11″ |
| A Height, Stowed |
2.56 m
8’ 5” |
| B Length, Stowed (without Forks) |
6.28 m
20’ 7” |
| C Width |
2.59 m
8’ 6” |
| D Wheelbase |
3.49 m
11’ 5” |
| E Ground Clearance (Center) |
0.46 m
1’ 6” |
| Ground Clearance (Axle) |
0.45 m
1’ 6” |
| Weight |
16 100 kg
35,494 lbs |
Technical Specifications
| ENGINE | |
| Exhaust after treatment (DRT+SCR) |
Standard (DEF Required)
|
| POWERTRAIN & TIRES | |
| Powershift transmission |
Standard
|
| Planetary limited slip axles |
Standard
|
| Full-time 4 wheel drive |
Standard
|
| Gear selector lever (Steering-column) with manual shift |
Standard
|
| Service brake (Servo-assisted, oil-immersed multi-disc) |
Standard
|
| Parking brake (Oil immersed disc type, SAHR) |
Standard
|
| Cushioned solid tires |
Standard
|
| HYDRAULIC | |
| Full variable load-sensing system |
Standard
|
| Single electric over hydraulic joystick controls |
Standard
|
| Axial piston pump |
Standard
|
| Hydraulic quick coupler lines (Auxiliary) |
Standard
|
| Self-leveling forks |
Standard
|
| Three steering modes (2W, 4W, 4W-Crab) |
Standard
|
| CABIN | |
| ISO certified ROPS/FOPS Enclosed Cabin |
Standard
|
| Emergency hammer |
Standard
|
| Rubber isolated cab mounts |
Standard
|
