ST230V
10,318 lbs

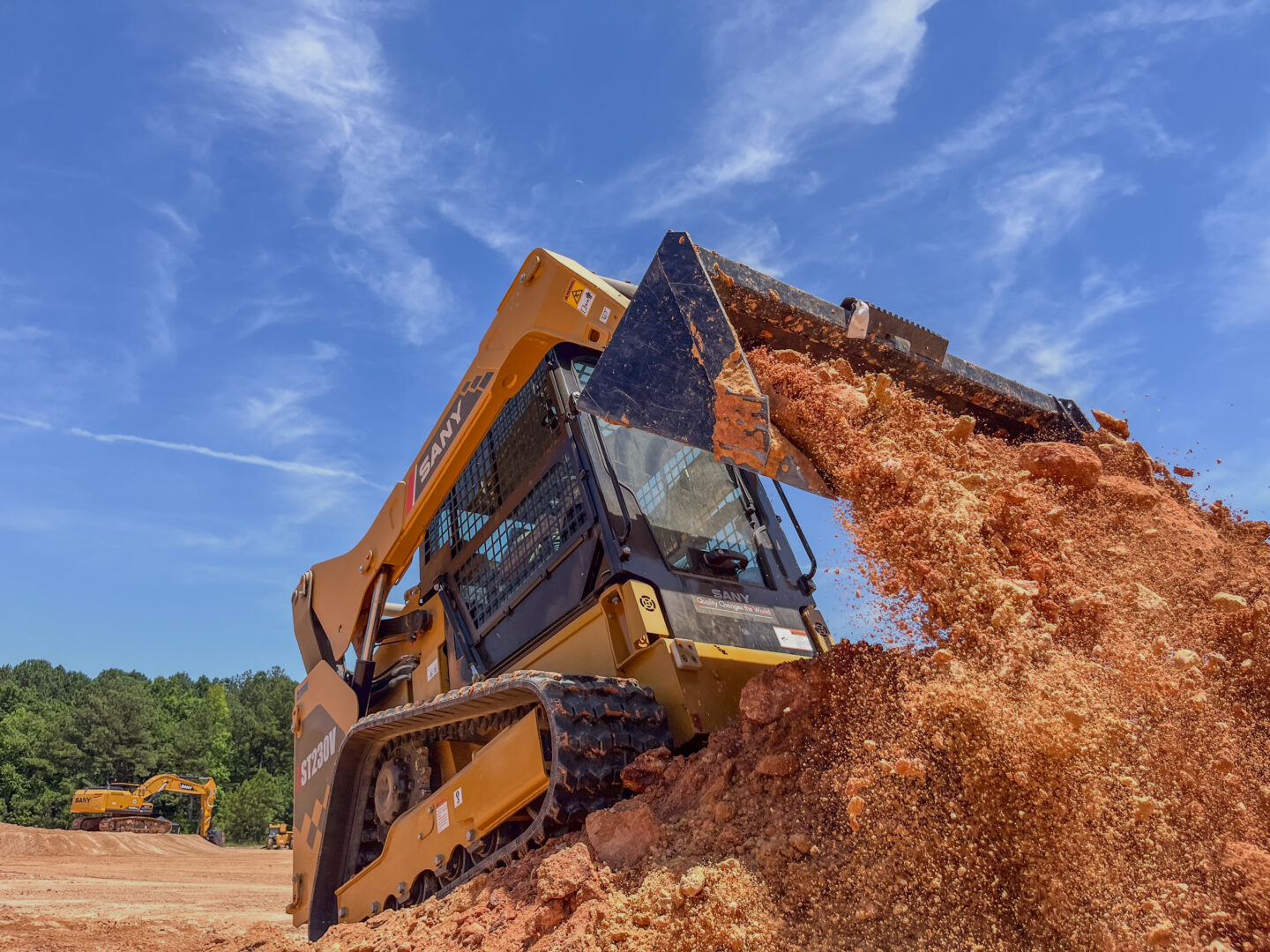

The SANY Compact Track Loader (CTL) is a versatile, high-performance machine built for demanding job sites. Weighing 10,318 lbs and powered by a 73 HP Yanmar engine, it delivers strong tractive force, stability, and smooth operation on slopes. Its optimized weight distribution and heavy-duty design enhance gradeability and operator comfort, while standard transportability allows easy movement on trucks and trailers. With a universal quick-attach coupler, the CTL supports hundreds of attachments, including buckets, grapples, snow blowers, trenchers, and pallet forks, making it ideal for landscaping, construction, agriculture, forestry, snow removal, utilities, and municipal work. Durable, easy to service, and highly efficient, the SANY CTL tackles a wide range of job site challenges.
Specifications and Brochure
Overall Dimensions
| OVERALL DIMENSIONS (ST230V) | |
| Maximum Overall Height (A) |
3 965 mm
156.1″ |
| Bucket Pin Height at Maximum Lift (B) |
3 060 mm
120.5″ |
| Clearance at Maximum Lift and Dump (C) |
2 340 mm
92.1″ |
| Reach at Maximum Lift and Dump (L1) |
1 065 mm
41.9″ |
| Ground Clearance (D) |
230 mm
9.1″ |
| Track Length On Ground (E) |
1 460 mm
57.5″ |
| Bumper Overhang behind Rear Axle (F) |
883 mm
34.8″ |
| Turning Radius from Center-Bucket (R) |
2 100 mm
82.7″ |
| Turning Radius from Center-Machine Rear (R1) |
1 685 mm
66.3″ |
| Maximum Dump Angle (G1) |
40°
|
| Rollback Angle of Bucket on Ground (G2) |
30°
|
| Departure Angle (G3) |
28°
|
| Length without Bucket (L2) |
2 885 mm
113.6″ |
| Length with Bucket on Ground (L) |
3 610 mm
142.1″ |
| Over the Tire/Track Width (W1) |
1 675 mm
65.9″ |
| Over the Bucket Width (W) |
1 727 mm
68″ |
| Height to Top of Cab (H) |
2 100 mm
82.7″ |
Technical Specifications
| PERFORMANCE | |
| Rated Operating Capacity |
1 170 kg
2,580 lbs |
| Operating Weight |
4 680 kg
10,317 lbs |
| Tipping Load |
3 342 kg
7,370 lbs |
| Breakout Force, Tilt Cylinder |
25.5 kN
5,733 lbf |
| Lift Geometry |
Vertical Lift
|
| Travel Speed One |
8.6 km/h
5.3 mph |
| Travel Speed Two |
13.6 km/h
8.5 mph |
| Cycle Time (Raise/Lower/Dump) |
9.0 s
|
| Track Width |
320 mm
12.6″ |
| POWER SYSTEM | |
| Engine Model |
4TNV98CT
|
| Engine Speed |
2400 rpm
|
| Rated Power |
53.3 kW
71.5 hp |
| Peak Torque |
280 N.m @1560 rpm
|
| Displacement |
3.319 L
203 in³ |
| Bore x Stroke |
Ф98 x 110 mm
3.9 x 4.3″ |
| Aspiration / Emissions |
Turbo-charger / EPA Tier 4 Final
|
| HYDRAULIC SYSTEM | |
| Loader Hydraulic Pressure |
230 bar
3,336 psi |
| Standard Hydraulic Flow |
80 L/min
21 gal/min |
| High Hydraulic Flow |
120 L/min
31.6 gal/min |
| CAPACITY | |
| Diesel Tank |
100 L
26.4 gal |
| Hydraulic Tank |
39 L
10.3 gal |
| Engine Oil |
9.4 L
2.5 gal |
| Cooling System |
12 L
3.2 gal |
| Battery Capacity |
140 Ah
|
