SW305K
31,967 lbs | 163 hp | 3.2 yd3 Bucket Capacity

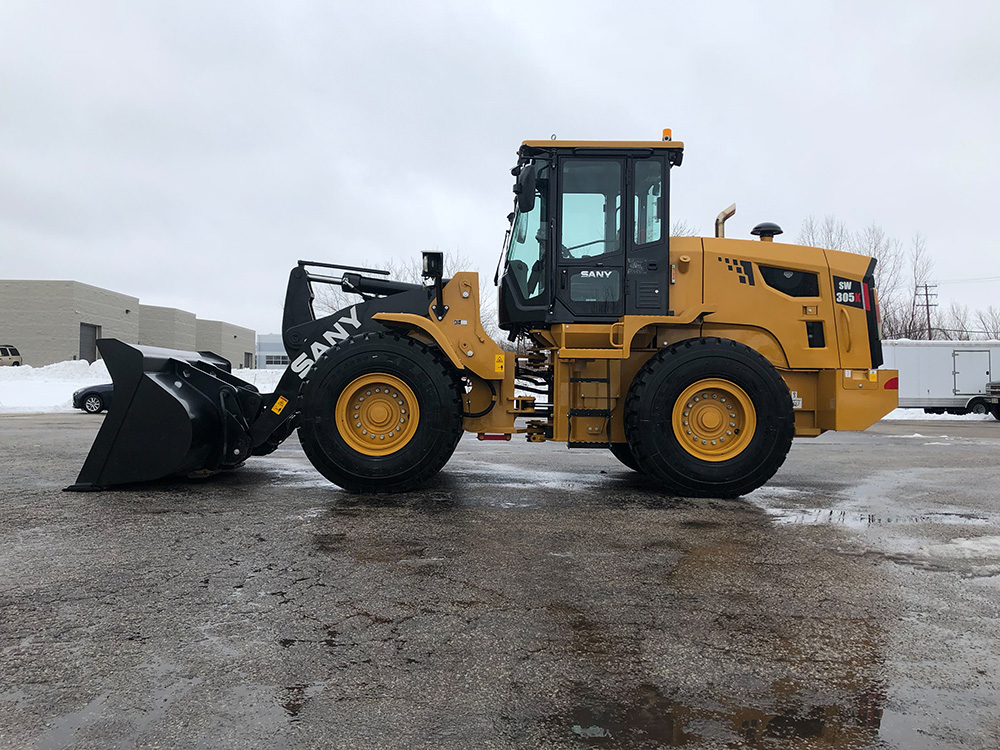

The SW305K wheel loader is a durable, reliable workhorse built for long production days. Its Z-bar linkage delivers 27,652 lbf of breakout force, while the Deutz engine, ZF transmission, and Kawasaki pumps ensure long-term performance. The cab offers excellent bucket visibility, a 360-degree camera, ergonomic controls, keyless entry, and a USB port for operator comfort and productivity.
- Duetz TCD6.1 Engin
- Boom Suspension System
- Differential Locking Axle
- Automatic Transmission Kick Down
- Bucket Self-Leveling And Return To Dig
- Single Joystick Control
- Third Function Hydraulics
- 360-Degree Camera
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| 1 Ground Clearance |
407 mm
1’ 4” |
| 2 Height to Top of Cab |
3 405 mm
11′ 2” |
| 3 Center Line of Rear Axle to Edge of Counterweight |
1 911 mm
6′ 3” |
| 4 Wheelbase |
3 000 mm
9′ 10” |
| 5 Center Line of Front Axle to Center Pivot |
1 480 mm
4’ 10” |
| 6 Shipping Length without Attachment |
6 226 mm
20’ 5” |
| 7 Shipping Length with Bucket |
7 518 mm
24′ 8” |
| 8 Max. Dump Height |
5 226 mm
17′ 2” |
| 9 Hinge Pin Height at Max. Lift |
3 845 mm
12′ 7” |
| 10 Dump Clearance at Max. Lift |
2 689 mm
8’ 10” |
| 11 Dig Depth, Level Bucket |
122 mm
4.8” |
| 12 Reach at Max. Lift and 45° Discharge |
1038 mm
3’ 5” |
| 13 Roll Back at Max. Lift |
61°
|
| 14 Dump Angle at Max. Lift and Dump |
45°
|
| 15 Roll Back at Carry Height |
49°
|
| 16 Roll Back at Ground |
42°
|
| 17 Tail Angle to the Rear Wheel |
28°
|
| 18 Clearance Circle to Outside of Tires |
5 382 mm
17’ 8” |
| 19 Clearance Circle to Counterweight |
5 365 mm
17’ 7” |
| 20 Max. Circle |
5 969 mm
19’ 7” |
| 21 Width |
2 045 mm
6’ 9” |
| 22 Articulation Angle |
+/-40°
|
Technical Specifications
| ENGINE | |
| Tier IV Final Certified |
Standard
|
| Keyless Start |
Standard
|
| Engine Emergency Stop (in cab) |
Standard
|
| Power and Economy Mode |
Standard
|
| Engine Preheater |
Standard
|
| Automatic Hydraulic Reversible Fan |
Standard
|
| Dual Element Air Filter |
Standard
|
| POWER TRAIN | |
| Gear Selector Lever (steering-column) |
Standard
|
| Fully Automatic Shifting 4F – 3R |
Standard
|
| Automatic Transmission Kick Down |
Standard
|
| Clutch-cutoff |
Standard
|
| Service Brake (4-wheel, wet-type, hydraulic) |
Standard
|
| Parking Brake (electronically controlled hydraulic caliper disc) |
Standard
|
| Differential Lock Front Axle (manual) |
Standard
|
| HYDRAULIC | |
| Quick Coupler & Plumbing |
Standard
|
| Full Variable Load-sensing System with Steering Priority |
Standard
|
| Single-lever EH Joystick (FNR+KD+Horn+3rd Function) |
Standard
|
| Dual Brake Pedals |
Standard
|
| Ride Control System |
Standard
|
| Bucket Kick-out & Level Indicator |
Standard
|
| Real Time Bucket Height Read Out (via display) |
Standard
|
| Bucket Self-leveling and Return to Dig |
Standard
|
