SW405K
40,786 lbs

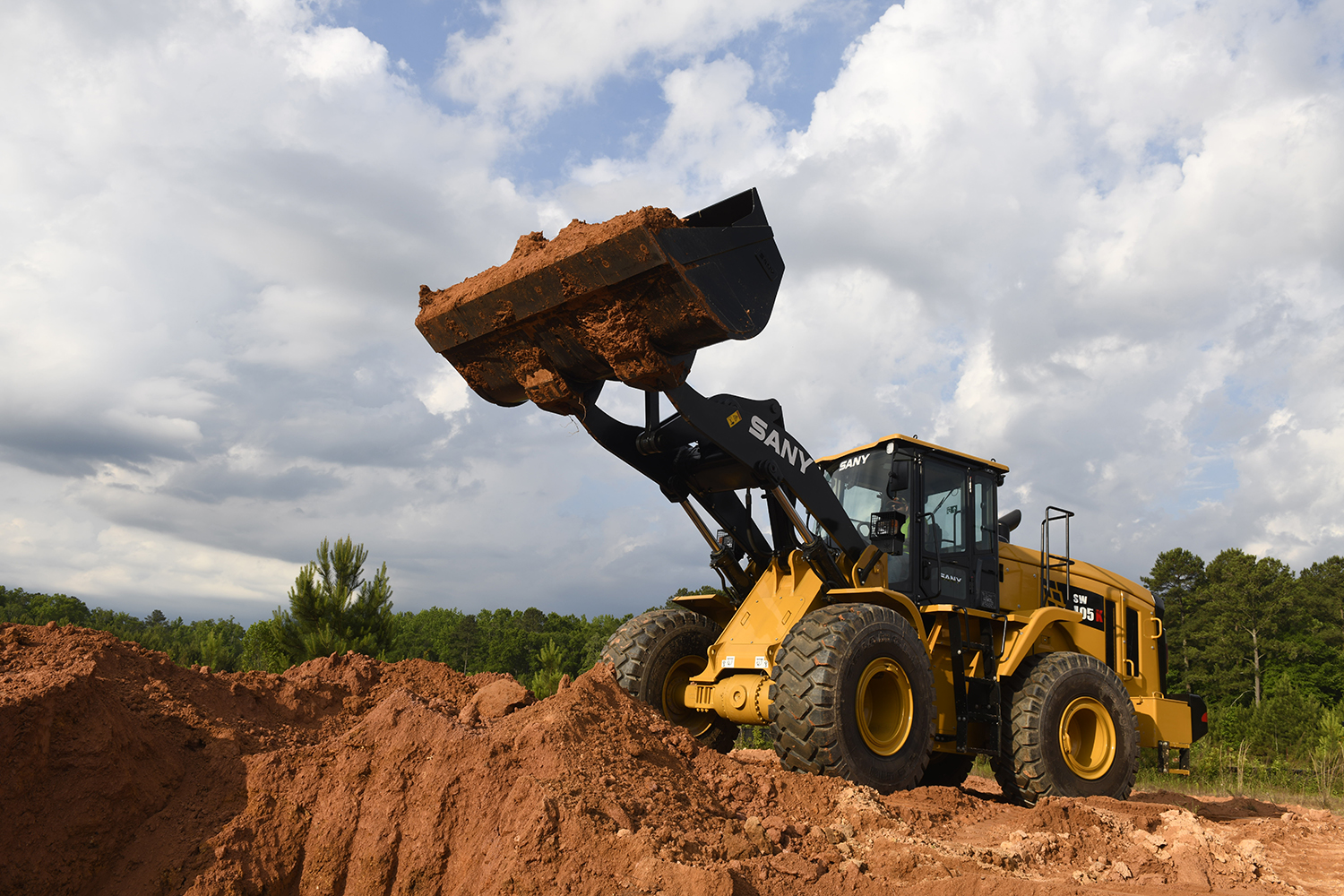

The SW405K wheel loader is built for heavy-duty work, including mining and demanding material handling. Its reinforced structure ensures durability and a long service life of up to 10,000 hours. The Z-bar linkage delivers 40,466 lbf of breakout force, while high-pressure, load-sensing hydraulics provide a balance of speed and power. The cab features a 360-degree camera, ergonomic controls, USB port, and keyless entry for operator comfort and productivity.
- The 228-Net Horsepower With Almost 40,000 LBS Of Breakout Force And Bucket Capacity of 4 Cubic Yards
- Tight Turning Radius Coupled With Fast Cycle Times WIth Return To Dig Functionality Means You’ll Spend More Time Working And Less Time Maneuvering
- Keep More Material In the Bucket With the SANY Book Suspension
- Time-Tested Components Such As The Eaton Load Sensing Steering Valve, Dana Axles And Brakes
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| 1 Ground Clearance |
430 mm
1’ 5″ |
| 2 Height to Top of Cab |
3 580 mm
11’ 9″ |
| 3 Center Line of Rear Axle to Edge of Counterweight |
2 335 mm
7’ 8″ |
| 4 Wheelbase |
3 200 mm
10′ 6″ |
| 5 Center Line of Front Axle to Center Pivot |
1 600 mm
5’ 3″ |
| 6 Shipping Length without Attachment |
7040 mm
23′ 1″ |
| 7 Shipping Length with Bucket |
8 180 mm
26′ 10″ |
| 8 Max. Dump Height |
5 415 mm
17′ 9″ |
| 9 Hinge Pin Height at Max. Lift |
4 145 mm
13′ 7″ |
| 10 Dump Clearance at Max. Lift |
3 090 mm
10′ 2″ |
| 11 Dig Depth, Level Bucket |
30 mm
1.2″ |
| 12 Reach at Max. Lift and 45° Discharge |
1 185 mm
3’ 11″ |
| 13 Roll Back at Max. Lift |
58°
|
| 14 Dump Angle at Max. Lift and Dump |
45°
|
| 15 Roll Back at Carry Height |
50°
|
| 16 Roll Back at Ground |
45°
|
| 17 Tail Angle to the Rear Wheel |
27°
|
| 18 Clearance Circle to Outside of Tires |
5 635 mm
18′ 6″ |
| 19 Clearance Circle to Counterweight |
5 911 mm
19′ 5″ |
| 20 Max. Circle |
6 465 mm
21′ 3″ |
| 21 Width |
2 200 mm
7’ 3” |
| 22 Articulation Angle |
+/- 40°
|
Technical Specifications
| ENGINE | |
| Tier IV Final Certified |
Standard
|
| Keyless Start |
Standard
|
| Engine Emergency Stop (in cab) |
Standard
|
| Power and Economy Mode |
Standard
|
| Cold Start Aid |
Standard
|
| Hydraulic-driven Reversible Fan |
Standard
|
| Dual Element Air Filter |
Standard
|
| POWER TRAIN | |
| Gear Selector Lever (steering-column) |
Standard
|
| Fully Automatic Shifting 4F – 3R |
Standard
|
| Automatic Transmission Kick Down |
Standard
|
| Clutch-cutoff |
Standard
|
| Service Brake (4-wheel, wet-type, hydraulic) |
Standard
|
| Parking Brake (electronically controlled hydraulic caliper disc) |
Standard
|
| Differential Lock Front Axle (manual) |
Standard
|
| HYDRAULIC | |
| Full Variable Load-sensing System with Steering Priority |
Standard
|
