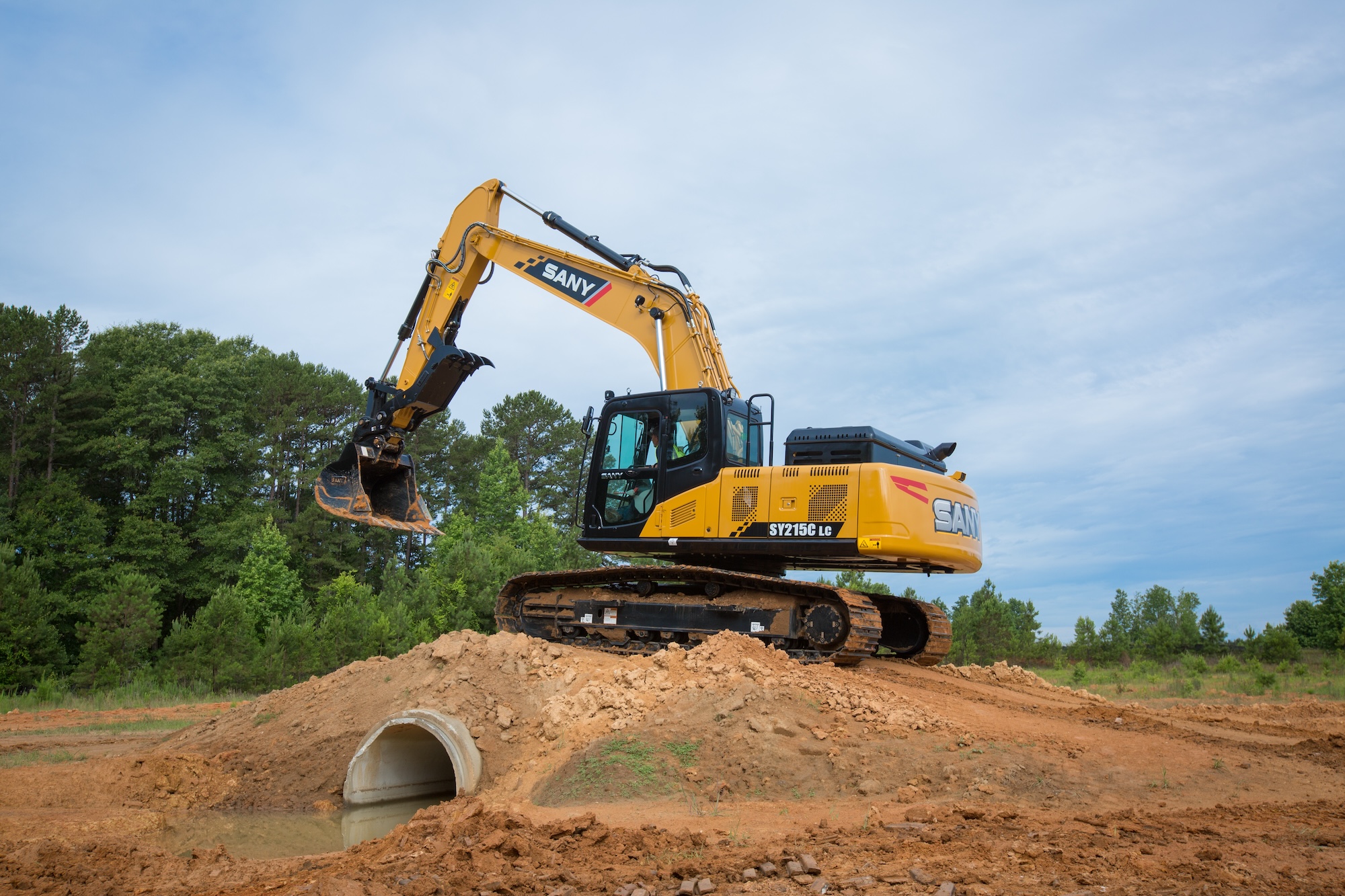

SY215C LC
51,919 lb | 163.6 HP | 21′ 8″ Dig Depth
The SY215C LC medium excavator delivers the power and durability needed for tough job sites. Powered by a fuel-efficient Cummins diesel engine, it can reduce fuel costs by up to 10%. Its optimized positive flow hydraulic system improves operating efficiency by up to 5%, helping you complete more work in less time and under challenging conditions.
- Powerful, Robust And Reliable Powertrain & Hydraulic Components For Long Life In the Most Demanding Applications
- Optimized Positive Flow Hydraulics Improve Operating Efficiency By Up to 5% And Fuel Efficiency by Up To 10%
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
5 700 mm
18’ 8” |
| Stick (Arm) Length |
2 919 mm
9’ 7” |
| A Transport Length |
9 728 mm
31’ 11” |
| B Transport Width |
3 180 mm
10’ 5” |
| C Transport Height |
3 370 mm
11’ 1” |
| D Upper Structure Width |
2 710 mm
8’ 11” |
| E Cab Height |
3 050 mm
10’ 0” |
| F Track Width (standard shoe) |
800 mm
31” |
| G Track Gauge |
2 380 mm
7’ 10” |
| H Ground Clearance (minimum) |
480 mm
19” |
| I Tail Swing Radius |
2 890 mm
9’ 6” |
| J Track Length on Ground |
3 640 mm
11’ 11” |
| K Track Length |
4 450 mm
14’ 7” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
340.0 L
89.5 gal |
| DEF Tank Capacity |
19.0 L
5.0 gal |
| Hydraulic Tank Capacity |
230.0 L
60.5 gal |
| Engine Oil Capacity |
27.0 L
7.1 gal |
| Cooling System Capacity |
27.6 L
7.3 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
23 550 kg
51,919 lbs |
| Ground Pressure |
36.3 kPa
5.3 psi |
| Engine |
Cummins QSB6.7 T4F
|
| Displacement |
6.7 L
408.9 in3 |
| Gross Power |
122 kW
163.6 HP |
| Hydraulics |
Positive Flow Control with Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
444.0 L/min
117.3 gal/min |
| Operating Pressure (maximum) |
34.3 MPa
4,975 psi |
| Power Boost Pressure (maximum) |
37.3 MPa
5,410 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Pressure (maximum) |
34.3 MPa
4,975 psi |
| Travel Speeds (maximum) |
3.1 / 5.3 km/hr
1.9 / 3.3 mph |
| Travel Effort (maximum) |
180.0 kN
40,466 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Axial Piston with Swing Brake
|
| Swing Pressure (maximum) |
27.5 MPa
3,989 psi |
| Swing Speed (maximum) |
10.9 RPM
|
| Undercarriage (standard) |
Steel Track
|
| Track Shoe width (standard) |
800 mm
31” |
| Track Rollers (per side) |
9
|
| Carrier Rollers (per side) |
2
|
