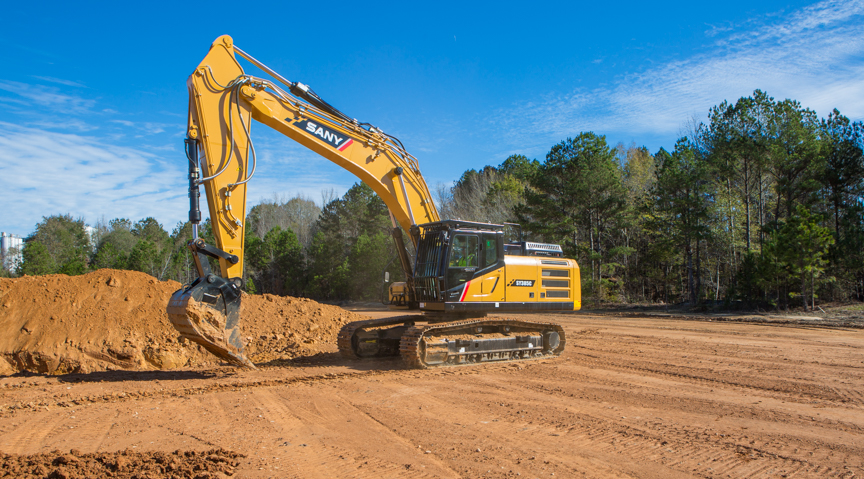

SY385C
85,318 lbs | 26′ 4″ Dig Depth
The SY385C heavy-duty excavator is built for mass excavation, utility infrastructure, forestry, construction, and demolition. Its long chassis provides stability, while dual auxiliary circuits and quick coupler plumbing make attachment changes simple for easy transport between job sites. Engineered for deep digging, material handling, and large-scale work, it delivers exceptional breakout force and lifting capacity. With advanced hydraulics, rugged construction, and easy serviceability, the SY385C offers the power, precision, and durability needed for high productivity in demanding conditions.
- Long Chassis
- Dual Auxiliary Circuits
- Quick-Coupler Plumbing To the End of The Stick
- 2nd Auxiliary Gear Pump
- ROPS Certified Cab
- Standard Review Camera
- 10” Multifunction Monitor
- Kawasaki Hydraulics
- Power Boost On Joystick
- Cummins Engine
Specifications and Brochure
Overall Dimensions
| DIMENSIONS | |
| Boom Length |
6 500 mm
21’ 4” |
| Stick (Arm) Length |
3 200 mm
10’ 6” |
| A Transport Length |
11 137 mm
36’ 6” |
| B Transport Width |
3 190 mm
9’ 9” |
| C Transport Height |
3 350 mm
12’ 3” |
| D Upper Width |
2 986 mm
9’ 9” |
| E Cab Height |
3 490 mm
11’ 5” |
| F Track Width (standard shoe) |
800 mm
31” |
| G Track Gauge |
2 590 mm
7’ 10” |
| H Minimum Ground Clearance |
537.5 mm
1’ 9” |
| I Tail Swing Radius |
3 461 mm
11’ 4” |
| J Length Center Idler to Center Sprocket |
4 135 mm
13’ 7” |
| K Track Length |
5 080 mm
16’ 7” |
| SERVICE REFILL CAPACITIES | |
| Fuel Tank Capacity |
600.0 L
132 gal |
| DEF Tank Capacity |
72.0 L
19 gal |
| Hydraulic Tank Capacity |
440.0 L
117 gal |
| Engine Oil Capacity |
36 L
9.5 gal |
| Cooling System Capacity |
36.0 L
7.9 gal |
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Operating Weight |
37 300 kg
82,232 lbs |
| Ground Pressure |
68.0 kPa
9.9 psi |
| Engine |
Cummins QSL9 Stage V / Tier4F
|
| Displacement |
8.9 L
542 in3 |
| Gross Power @2,100 RPM |
231 kW
314 HP |
| Hydraulics |
Positive Flow w/Pilot Control
|
| Main Hydraulic Pump |
Axial Piston – Variable Displacement
|
| Operating Flow (maximum) |
720.0 L/min
190 gal/min |
| Operating Pressure (maximum) |
34.3 MPa
4,975 psi |
| Travel Pressure (maximum) |
34.3 MPa
4,975 psi |
| Slew Pressure |
26.0 MPa
4,134 psi |
| Pilot Pressure |
3.9 MPa
566 psi |
| Travel Motor |
Axial Piston with Park Brake
|
| Travel Speeds (maximum) |
3 / 5 km/hr
1.9 / 3.1 mph |
| Tractive Effort (maximum) |
320 kN
71,938 lbf |
| Grade Capability (maximum) |
35°
|
| Swing Motor |
Planetary Drive w/Axial Piston Motors
|
| Swing Pressure (maximum) |
28.5 MPa
4,134 psi |
| Swing Speed (maximum) |
8.8 RPM
|
| Undercarriage (standard) |
Steel Track
|
| Number of Upper Rollers (per side) |
2
|
| Number of Lower Rollers (per side) |
9
|
